Guage Pressure Transducer for both Gas and Liquid
Capacitance type gauge pressure transducer which equips DC output amplifier. SUS630 diaphragm that has great characteristics for corrosion resistance and durability is used
Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Materials combining unprecedented flexibility and durability
Capacitance type gauge pressure transducer which equips DC output amplifier. SUS630 diaphragm that has great characteristics for corrosion resistance and durability is used
Sensing element | SUS630 | |
---|---|---|
Pressure media | SUS630 Gas/Liquid, covered by Viton rubber corrosion resistance characteristics | |
Pressure media | Gauge pressure | |
Accuracy | PT-142B-A: ±0.15% of F.S. (including the linearity, repeatability, and hysteresis) PT-141C: ±0.25% of F.S. (including the linearity, repeatability, and hysteresis) | |
Temperature characteristic | Zero | ±0.03% of F.S./℃ |
Span | ±0.02% of F.S./℃ | |
Allowable pressure | 5MPa or lower: Twice of F.S. Other: 1.5 times of F.S. | |
99% Step response speed | 30ms max | |
Power source | 26 to 32VDC 20mA max | |
Weight | PT-141C; Approx. 150g PT-142B-A: Approx. 300g | |
Pressure connection port | Rc(PT) 1/8 | |
Ambient temperature | 5~40℃ | |
Output voltage | 0 to 5 VDC, depending on the pressure range *Resistance: min, 5kΩ | |
Option | 0~50MPa Negative pressure, Positive/Negative pressure | |
Documents | Traceability documents, Operation manual |
Model | Pressure range |
---|---|
PT-142B-A PT-141C(Splash proof type) | 0~50kPa |
0~100kPa | |
0~200kPa | |
0~500kPa | |
0~1MPa | |
0~2MPa | |
0~5MPa | |
0~10MPa | |
0~20MPa |

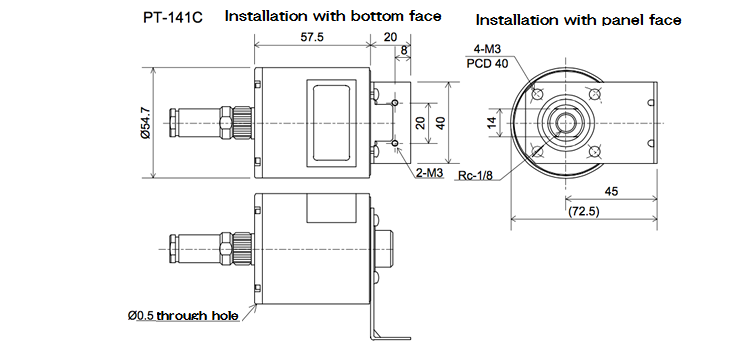

PT-141C Appearance

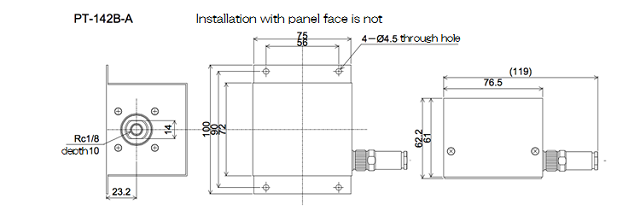

PT-142B-A Appearance
