Capable of obtaining the parameters necessary for the in-line tester.
Analysis of saved data and obtain the pass/fail judgment required for the ln-line test.
Air Leak Testers
Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Air Flow Testers
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium / Hydrogen Leak Testers
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
Pressure
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripherals
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
Sound / Vibration Analyser
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Cosmo Super Gel
Materials combining unprecedented flexibility and durability
Others
Capable of obtaining the parameters necessary for the in-line tester.
Analysis of saved data and obtain the pass/fail judgment required for the ln-line test.
Access to saved WAV. data and carry out the various analysis listed below.

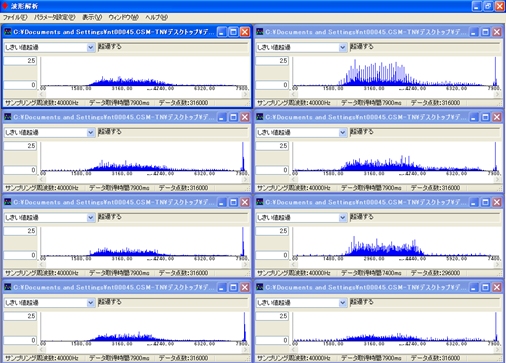

○ Comparison Screen Display (Dual Screen) feature
Displays two screens on the same PC side by side, allowing for performing analysis by comparing the two screens.
○ FFT Analysis feature
Allows for checking the frequency distribution of the acquired waveforms.
○ Simple Judgment feature
Allows for setting the threshold value on the Analysis screen, making a judgment, based on the Judgment Criteria: Excess Threshold Value Area, and displaying the result.
○ Waveform Clipping feature
Focuses on the specified period of time of the interest and clips the acquired waveforms in that period of time.
○ Waveform Data Saving feature
Save the acquired data in WAV. text format.

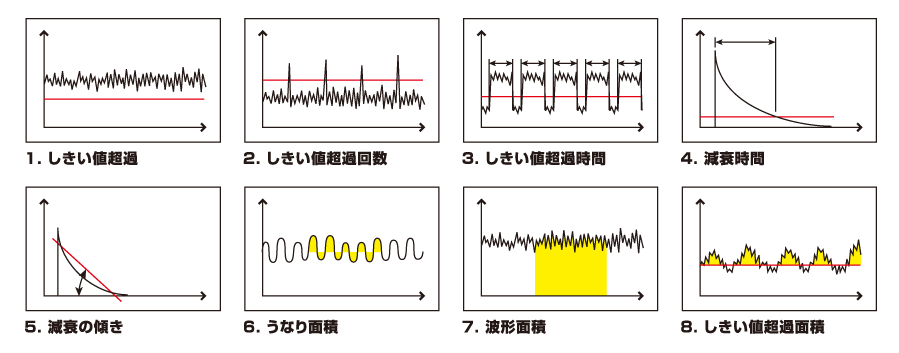

Saved waveform can be quantified by 8 judgment criteria.
Up to 8 waveforms can be displayed on PC screen and made a comparison, according to the above judgment criteria.

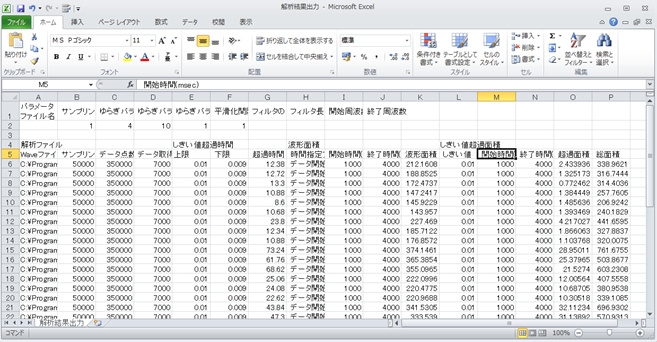

This program allows for outputting the analyzed and quantified results in CSV format.
This data can be used to perform statically processing.
