Wide pressure range from 200 Pa to 50 MPa.
Equipped with high-accuracy sensor excellent in pressure-proof performance.

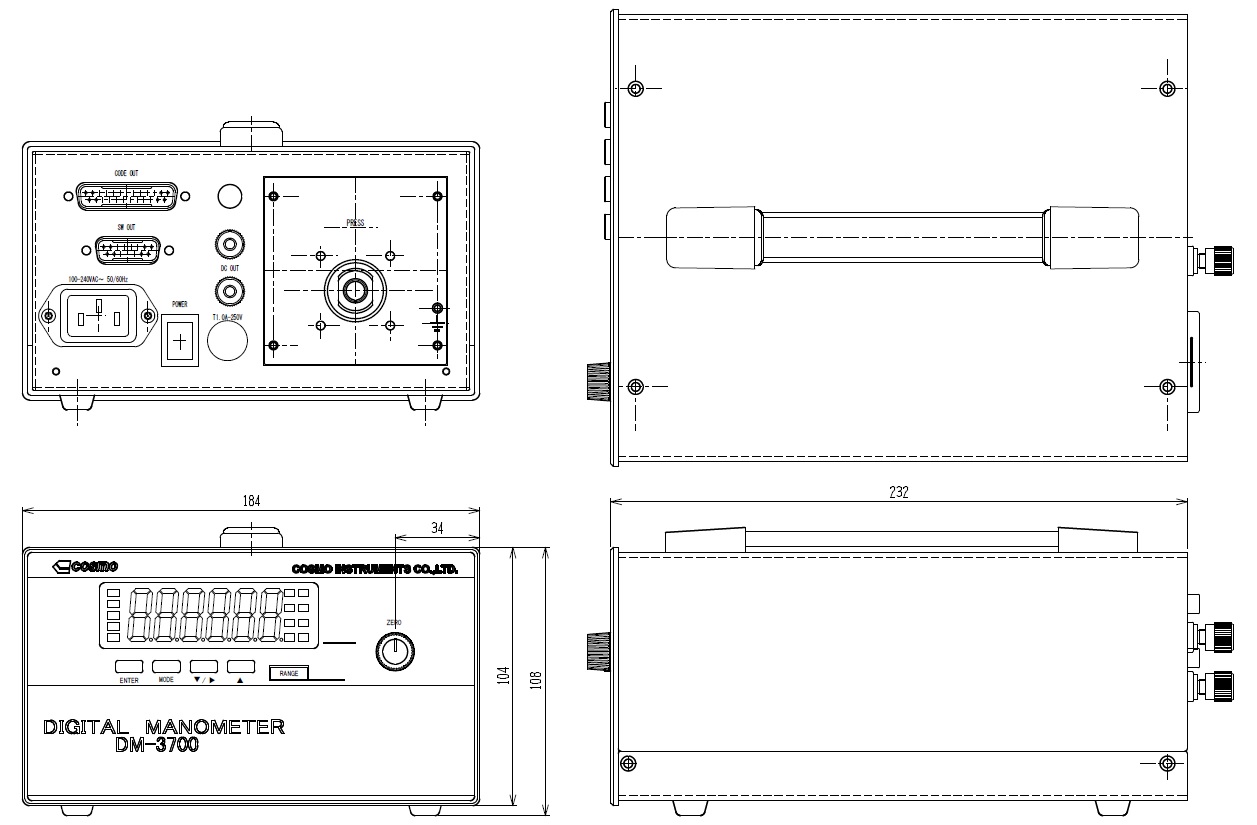

Model：DM-3700(A.BC.D)
A, B and C in the model notation are mandatory.
| Category | Code | Description | |
|---|---|---|---|
| A | Pressure Range | See the Range List | |
| B | Sensor | N | Internal pressure sensor (Standard) |
| S1 | External pressure sensor | ||
| S2 | External pressure sensor with drip-proof (Gauge pressure only) *1 | ||
| C | Sensor Cable Length | L1 | 3m (Standard) |
| LX1 | 1m | ||
| LX5 | 5m | ||
| LX10 | 10m | ||
| BCD | D1 | Open collector | |
| D2 | TTL output | ||
| Analog Output | F1 | Analog output F.S. 5 V | |
| F2 | Analog output F.S. 10 V | ||
| Display Digits | Q | Change of the minimum display digit (Only for the ranges that include 1)*2 | |
| Mounting Brackets | P | Mounting Brackets | |
| D | Power Cord (Standard accessory) | VA | 125 VAC 3m power cord |
| VE | 250 VAC 2 m power cord | ||
| VK | 250 VAC 2 m power cord (Mandatory for Chinese customers) |
*1. Accuracy of S2 model: ±0.25％ of F.S.±1digit.
*2. The analog output is amplified to 10 V.
