| Sensing element | Beryllium copper | |
|---|---|---|
| Pressure media | Air or non-corrosive gases | |
| Pressure type | Differential presssure, Gauge pressure | |
| Accuracy | ±0.15% of F.S. (including the linearity, repeatability, and hysteresis) | |
| Temperature characteristic | Zero | ±0.03% of F.S./℃ |
| Span | ±0.02% of F.S./℃ | |
| Allowable pressure | 10 times of F.S. or 500kPa max | |
| Maximum line pressure | 2 times of the allowable pressure | |
| 99% Step response speed | PT-105A-A; 300ms max PT-103B-A: 220ms max | |
| Power source | ±15VDC 20mA max | |
| Weight | PT-105A-A; Approx. 700g PT-103B-A: Approx. 480g | |
| Pressure connection port | Rc1/8 | |
| Ambient temperature | 5~40℃ | |
| Output voltage | 0.5 to 2 VDC, depending on the pressure range *Resistance: min, 5kΩ | |
| Option | 上Negative pressure, Positive/Negative pressure | |
| Documents | Traceability documents, Operation manual | |
| Model | Pressura range |
|---|---|
| PT-105A-A | 0~200Pa |
| PT-103B-A | 0~500Pa |
| 0~1kPa | |
| 0~2kPa | |
| 0~5kPa | |
| 0~10kPa | |
| 0~20kPa | |
| 0~50kPa | |
| 0~100kPa |

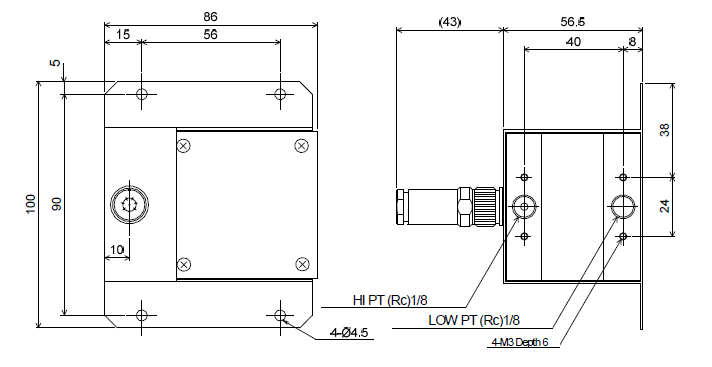

PT-105A-A Appearance
