| Model | LZ-3000 |
|---|
| Target workpieces | Small, sealed electronic components |
|---|
| Processing capabilities | Maximum of 60 pieces/minute (1.0 second/piece) |
|---|
| Gross leak test system | Micro-volume detection type air leak tester system |
|---|
| Number of air leak testers included: | 8 |
|---|
| Air leak tester specifications | Model | LUV-880-KX03 | LUV-880-KX05 | LUV-880-KX2 |
|---|
| Minimum workpiece internal clearance volume | 0.3 mm^3 or more | 0.5 mm^3 or more | 2.0 mm^3 or more |
|---|
| Minimum detectable equivalent price standard leak amount | 1.17×10^-6 Pa・m^3/sec | 5×10^-6 Pa・m^3/sec | 2×10^-5 Pa・m^3/sec |
|---|
| Target workpiece size | 2.0×1.6 2.5×2.0mm | 2.5×2.0 3.0×3.0 3.2×2.5mm | 3.8×3.8 5.0×3.2 9.5×7.2mm |
|---|
| Workpiece supply method | Lined-up supply from part feeder with hopper |
|---|
| Workpiece transport system | Movable pick and place, left to right two-part index |
|---|
| Inspection movements | Full-automatic operation | ■ Normal operation, ■ Calibrating operation, ■ Recovery operation |
|---|
| Manual operation | ■ Individual operation, ■ Calibrating operation, ■ Return to original position, ■ Withdrawing operation |
|---|
| Decision processing | Collection of sorted out defective pieces in collection bucket |
|---|
| Self-diagnosis function | Self-diagnosis of tester malfunction, individual movement malfunction, pressure anomaly, etc. |
|---|
| Information output | Automatic collection of measurement result data on USB memory, RS-232C |
|---|
| Environment conditions | 5~40℃ |
|---|
| Power Source | Three-phase 380V and three-phase 200V, 50/60Hz 1.5kW |
|---|
| Air pressure source | 0.4MPa or greater 250L/min pipe size: Rc1/2 (PT1/2 internal thread) |
|---|

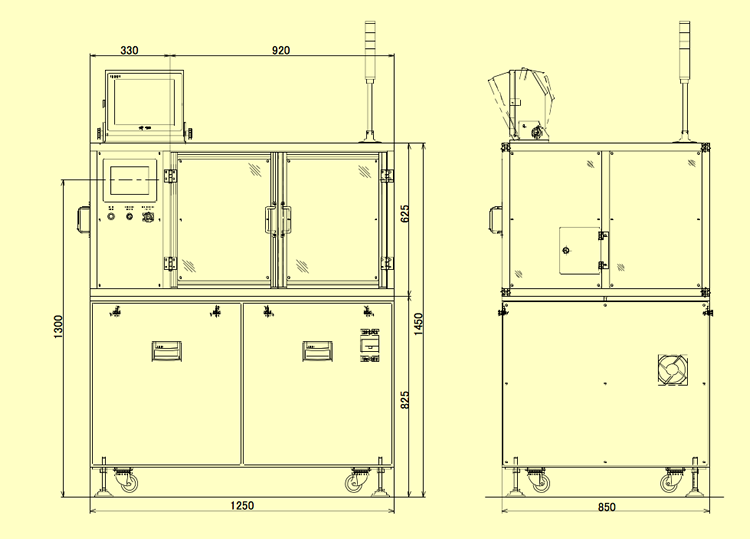

| Outer dimensions | 1250 (W)×1450(Max1890)(H)×850(D) mm |
|---|
| Options | * Compatible with similar workpieces of multiple types * Workpiece supply discharge (online compatible/ career magazine compatible) |
|---|
| Documents | Traceability documents, Operation manual |
|---|
