Electropneumatic regulator to handle ultra-low pressure ranges
Electropneumatic regulator to handle the micro-low pressure ranges.
Voltage input 0 to 5V controls micro-low pressures and generate the large volume of flow
Air Leak Testers
Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Air Flow Testers
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium / Hydrogen Leak Testers
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
Pressure
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripherals
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
Sound / Vibration Analyser
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Cosmo Super Gel
Materials combining unprecedented flexibility and durability
Others
Electropneumatic regulator to handle the micro-low pressure ranges.
Voltage input 0 to 5V controls micro-low pressures and generate the large volume of flow
| Pressure range | Micro-low pressure 0 to 7kPa Low pressure 0 to 35kPa |
|---|---|
| Control Voltage | 0～5VDC |
| Maximum control flow rate | 7kPa range： 120L/min (Inlet pressure at 50kPa) 35kPa range： 200L/min (Inlet pressure at 100kPa) |
| Control accuracy | ±0.2% of F.S. |
| Operating power source | DC24V±2V |

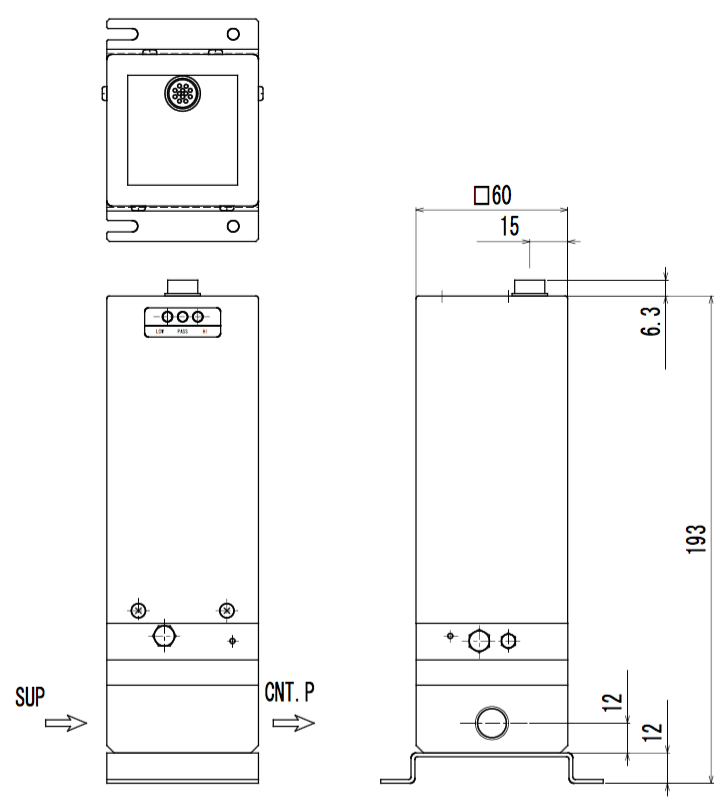

| Dimensions | 60×60×200mm |
| Weight | Approx. 1kg |
