Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Materials combining unprecedented flexibility and durability
It shows its magnificence in the use of air circuits that may not leak.

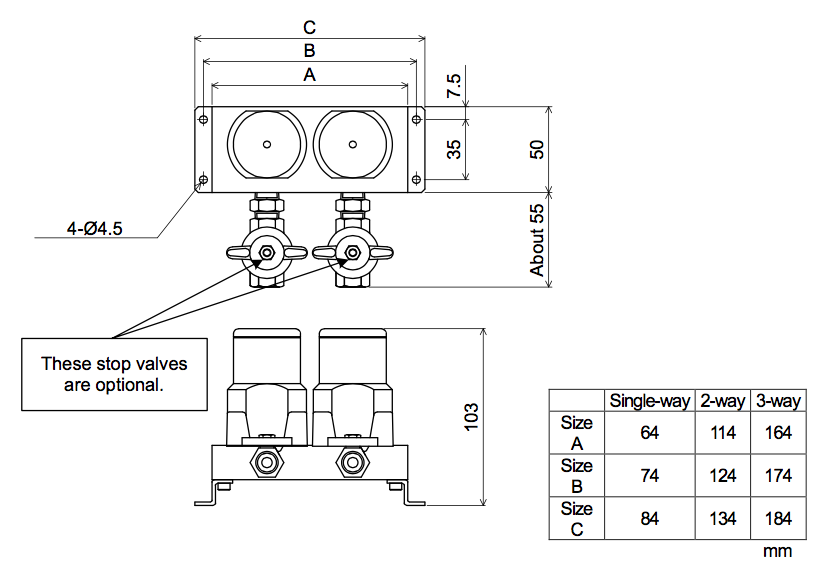

For situations when it is necessary to switch the workpiece and master, the switching valve is inserted into the precise leak test circuit.
Cosmo Instruments has made available an exclusive switching valve that makes use of the company’s leak test know-how.This ideal switching valve not only stops valve leaks, but also constrains deformations.
| Operating pressure range | Medium and Low Pressure: 0 to 500 kPa Vacuum Pressure: 0 to -100 kPa |
|---|---|
| IN and OUT connection port | Rｃ1/4: (Same diameter for Come with a stop valve option) |
| Pilot pressure port | Comes with a 4 mm Push-on fitting |
| Orifice diameter | Ø5 |
| Valve seat leak | 0.007 mL/min or less |
| Pilot pressure | 400 to 700kPa Connected to 4 mm diameter Push-on fitting |
| A | Number of Valves | 1 : Single | 2 :Dual | 3 : Triple |
|---|---|---|---|---|
| B | Specifications | 0 : Normally Open × 1 1 : Normally Closed × 1 | 0 : Normally Open × 2 1 : Normally Closed × 2 2 : Normally Open × 1、Normally Closed × 1 | 0 : Normally Open × 3 1 : Normally Closed × 3 |
| C | Operating pressure range | M : Medium and Low Pressure, V : Vacuum Pressure | ||
| D | Option | B : Comes with a Stop valve | ||
