Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Materials combining unprecedented flexibility and durability
This system is capable of registering up to 99 items (Settings) to accommodate the various tested parts.
8 different judgement criteria allows to guarantee the high precision measurement.
In conjunction with external controllers, the automated test line can be realized.
VGA port x 1: Monitor display
USB port x 2: Keyboard /mouse operation / Data storage media (HDD, Flash memory etc)
LAN port x 1: Ethernet connection

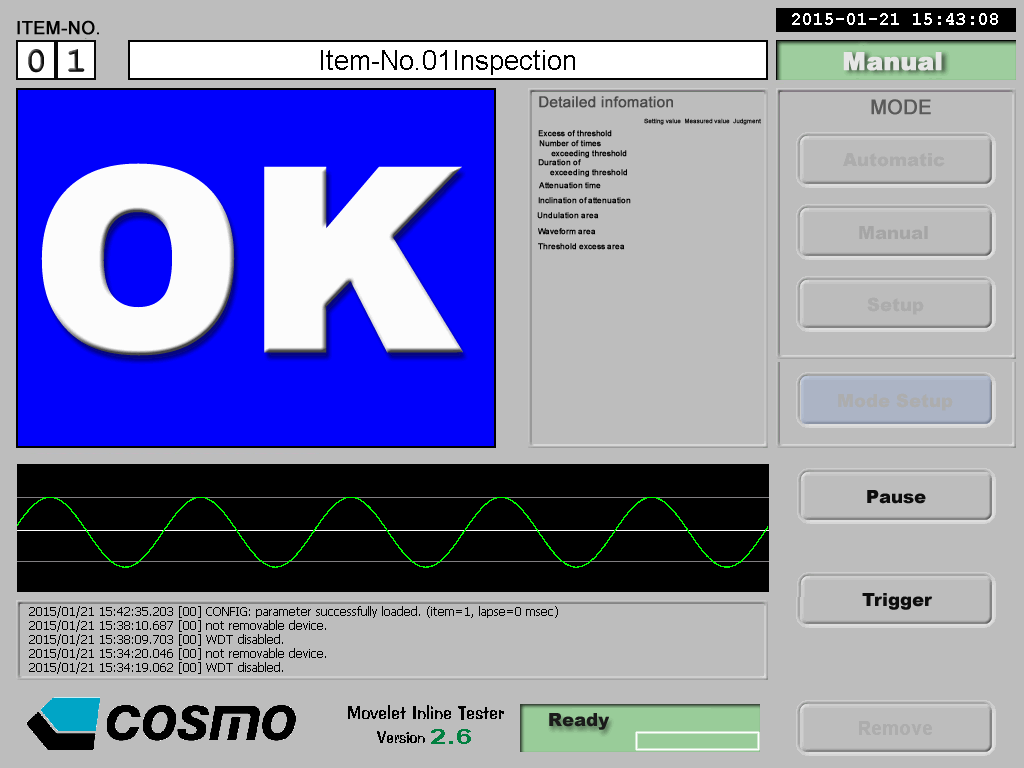

・Display analyzed waveform
・Choose display waveform (can choose from newest 8 data)

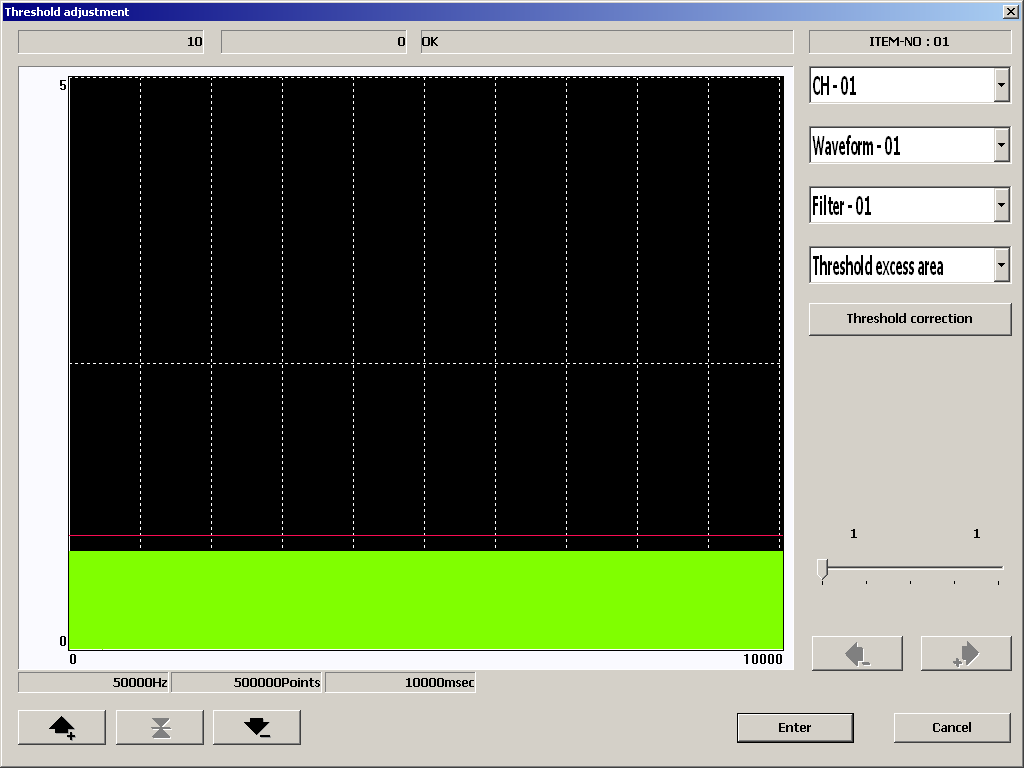

・Threshold correction
・Automotive
power seat,seat rail,air-conditioner blower,power sunshade,starter,power door mirror,power window,wiper motor,engine(four-wheel and two-wheel drive),horn,fan,brake pad,car audio,power steering,transaxle motor
・Electrical components
fan motor,small motor,pump,transformer
copier,fax machine,printer
camera(shutter sound,focus motor),mobile phone,air-conditioner
golf club(impact sound),crack in ceramics/sintered metal,buildings materials(crack,peeling),connector clicking sound
Operating noise inspection when moving or reclining the seat forward / backward.
Engine assemble defects or missing components inspection.
Crack, flaw and breakage hammering inspection of the ceramic.
Motor operation noise inspection.
Fan motor operation noise inspection
Pump operation noise inspection
Vibration, abnormal noises inspection of the transformer.
Crack, flaw and deterioration inspection of the tunnel, concrete, mortar and so on.
Construction material quality control
Conveyer noise inspection
Connector fitting sound inspection
Test the sound generated at fitting time.
By having the sample Pass/Fail examples of tested parts, we will be able to perform the analysis trial at your site or Cosmo premise.
Please feel free to contact the nearest Cosmo office if you have any questions.
