This tester is ideal to test Water-proof components or finished products which require IP Protection Rating.The part to be tested is placed in a capsule and pressurized to measure the pressure change caused by leak flowing into the part.
| Differential Pressure | Resolution | 0.1 Pa | |
|---|---|---|---|
| Display Range | ±999.9Pa、（Accuracy guaranteed range±1000Pa） | ||
| Accuracy | ±2.5% of rdg ±1Pa、５０Pa or lower±2Pa | ||
| Sensor Proof Pressure | 5 MPa | ||
| Dislay Unit | Test Pressure | kPa，MPa
(Non SI Unit for overseas use kg/cm2, PSI, bar, mmHg,他) | |
| Leak Rate | Pa, kPa, mL/s, mL/min, L/min, Pa・m3/s, E-3 Pa・m3/s, Pa/s, Pa/min,＊Pa/s, ＊Pa/min (Non SI Unit for overseas use mmH2O, mmHg, inH2O,Others) | ||
| K(Ve) （Leak Coefficient） | mL, L (Non SI Unit for overseas use in3, ft3) | ||
| Leak Rate Display | 4 digits, Sampling Rate 10 times/sec | ||
| Leak Limit | 999.99 max | ||
| Number of Channels | 32ch（0～31） | ||
| Timer | 999.9 sec（Resolution 0.1 sec） | ||
| Power Source | AC100～240V±10%, 50/60Hz,70VA max | ||
| Ambient Temperature | 5～45 ℃ | ||
| Humidity | 80% RH or less / No dew condensation | ||
| Weight | Controller: approx. 2.6kg, Pneumatic unit: approx. 7.1kg | ||
| Test Pressure Source | Clean and dry air regulated to the test presssure Source pressure must be sufficiently higher than the test pressure | ||
| Pilot Pressure | Set by using the pilot pressure filter regulator installed： Range: 400 to 700kPa | ||
| Port Size | M1K1 | Special joint is used only for WORK and MASTER port tubing | |
| M3K4 | Rc(PT)1/4: Pressure source, WORK and MASTER ports) | ||
| CPU | SH-2A 144MHz, DRAM8MB | ||
| RS-232C (D-sub 9pin) | ID2 Format | Limit values as well as Large leak limit and Small leak limit are transmitted | |
| L2 Format | LL-DET and S-DET test results are transmitted | ||
| Others | Other 4 formats available | ||
| USB Port | Test data | Judgment, Leak, Test pressure, Channel #, Time, etc | |
| Test parameter | Test parameters of all the settings screens | ||
| Standard Accessories | Pilot pressure filter regulator,Quick mounting brackets,Control I/O connector, Power cord, Inspection recordsOperation manual(CD),Traceability documents | ||

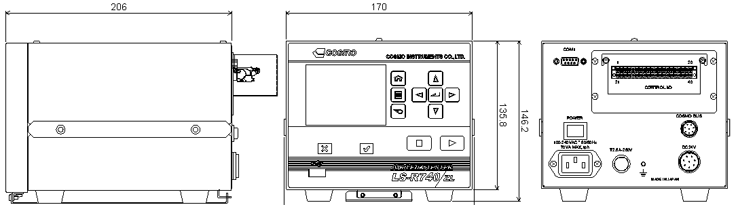

Controller
Pneumatic Circuit Unit
