Air Leak Tester is the automatic leak detector detects any leaks by the minute change of differential pressure and conducts OK/NG judgment. Ideal to be built into a production line for a laborsaving and a quality control purpose
Variety ranges from F.S.10mL/min to F.S 500L/min are available. Promotes an automation and a laborsaving of the measurement
Helium Leak Tester adopts the new testing method and Helium Leak Tester adopts the new testing method and
All Manometer comes with a traceability. Wide range of Manometers, from a micro pressure (F.S. 200Pa) to a high pressure (F.S. 50MPa) are available
Peripheral instruments are used with Air Leak Tester in order to enhance its functionality and convenience
We determine the acceptability of the sounds and vibrations of products using our special analyses developed in-house.
Materials combining unprecedented flexibility and durability

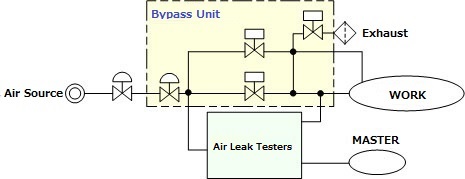

Bypass Circuit Unit allows reducing pressurization time for the parts with large volume, which helps reducing the total test time.
It also reduces test time.
Air Leak Testers can control Air operated valve(s) of the Bypass Circuit Unit.
There are Single, Dual and Triple valves. Select an ultimate one depending on the shape and volume of the tested parts.

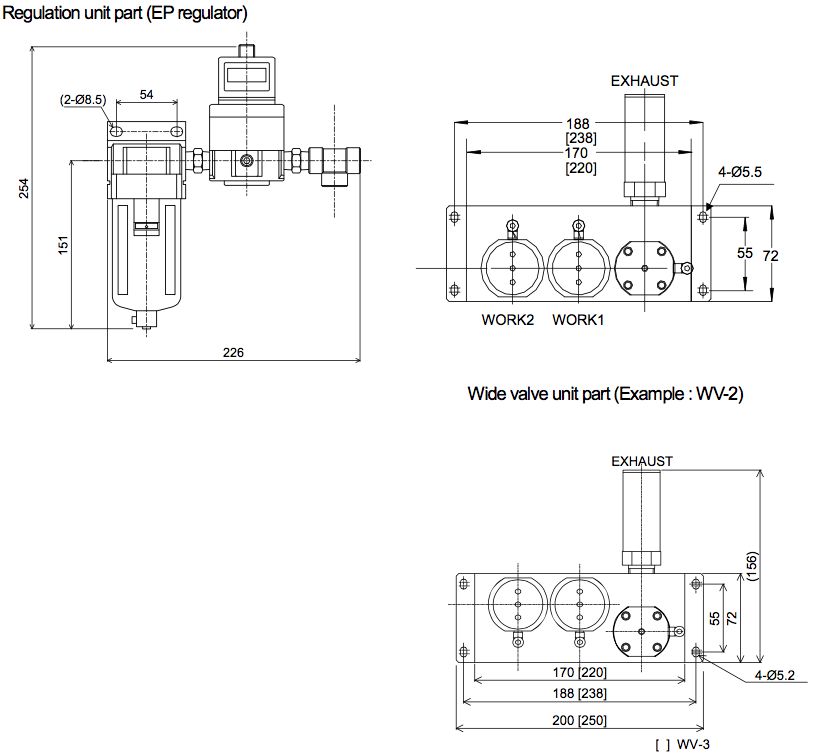

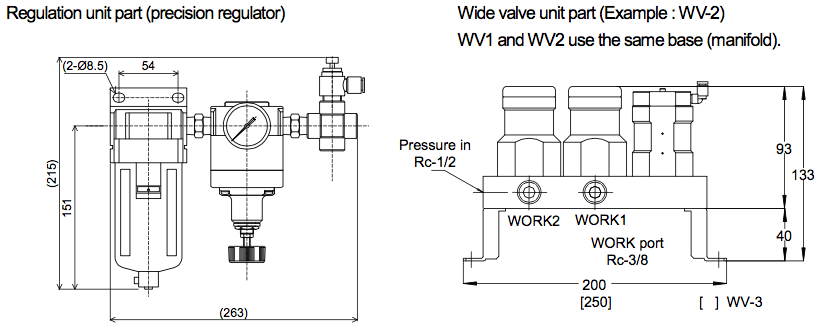

E/P Regulator Bypass Circuit Units are available for Air Leak Testers
| Precision regulator specifications | Electro-pneumatic regulator specifications | ||
|---|---|---|---|
| Leak Testers | Flow Testers | ||
| Component Parts | Oil mist separator (Positive pressure)
NOTE : Fittings and Pipes for Wide Valves are not included. | ||
| Precision Regulator(Comes with a Pressure gauge) | Electro-pneumatic regulator (Comes with a Pressure gauge) | Electro-pneumatic regulator(Note: Cable is enclosed. Make sure it does not pick up any noise from the power line.) | |
| Relief valve | |||
| Connection Diameter | Rc1/2 | Rc1/2(Rc 1/4 for Vacuum Pressure) | |
| Installation Limit | The unit should be installed within 3 m from LS-1881 and 5m from LS-R900/R700. | ||
